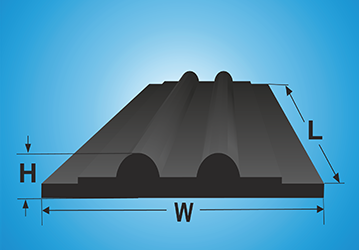

Description : Ball mill shell liners are used to protect the inner shell of cylinder from being impacted and worn directly by material and grind-ball. At the same time we can use different forms of shell liners to adjust the direction of ball mill motion to improve the grinding effect of the grinding media to material, and to help the ball mill to improve the grinding efficiency, increase production and reduce power consumption. The product provide by SAKAR rub-tech ensure the greatest wear resistance and tenacity to protect the inner shell of cylinder, reduce the maintenance times and prolong the service intervals of ball mill. We can provide customized products according to client's requitement.
Specification :
| L | 1130 mm | 1130 mm | 1130 mm | 1130 mm | 1130 mm | 1130 mm | 1130 mm |
|---|---|---|---|---|---|---|---|
| W | 350 mm | 360 mm | 370 mm | 380 mm | 385 mm | 380 mm | 300 mm |
| H | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 40 mm |

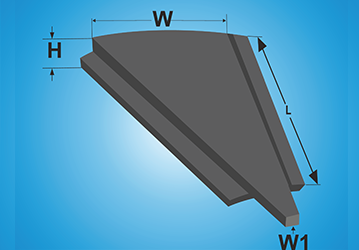

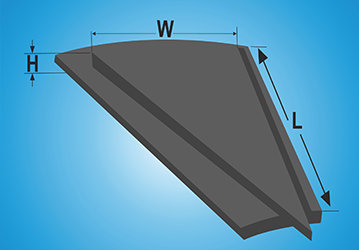

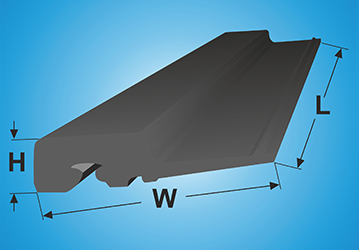

Description :This product is an important part for conical ball mill and its call " feed end liners for ball mill" its main function is to protect the end cover of ball mill. The high wear-resistance head liner provided by our company have improved the wear condition of the feed end liners for ball mill, that make the end liners have good wear-resistance and effectively increase the service life. We can also make customized products according to client design.
Specification :
| L | 1140 mm | 1270 mm | 1090 mm | 1255 mm |
|---|---|---|---|---|
| W | 440 mm | 550 mm | 385 mm | 415 mm |
| W1 | 50 mm | 60 mm | -- | -- |
| H | 50 mm | 55 mm | 50 mm | 50 mm |

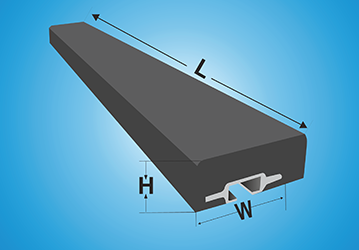

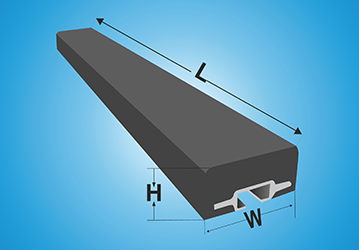

Description : As a liner, the lift bar is used to protect ball mill head from direct impact and friction by grinding medium and material. This kind of Mill Lifter Liner is widely used in all kinds of working condition to increase grinding efficiency and production and reduce consumption Of metal. SVC are able to provide customise this lifter bar conforming to customer's requirements by using combination of liner and lifter user can rotate the ball mill both clockwise & anti clockwise easily.
Specification :
| L | 1270 mm | 1190 mm |
|---|---|---|
| W | 122 mm | 142 mm |
| H | 75 mm | 80 mm |
| MODEL | RT 440 | RL 122 | RL 550 | RL 122 | OT 385 | OT 142 | OT 415 | OL 142 |
|---|---|---|---|---|---|---|---|---|
| L | 1140 mm | 1140 mm | 1270 mm | 1270 mm | 1090 mm | 1090 mm | 1255 mm | 1190 mm |
| W | 440 mm | 122 mm | 550 mm | 122 mm | 385 mm | 142 mm | 415 mm | 142 mm |
| W1 | 50 mm | -- | 60 mm | -- | -- | -- | -- | -- |
| W1 | 50 mm | 75 mm | 55 mm | 75 mm | 50 mm | 80 mm | 50 mm | 80 mm |

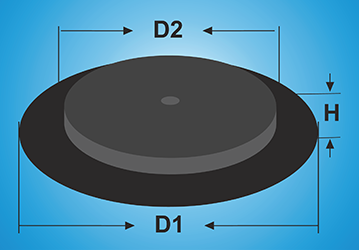

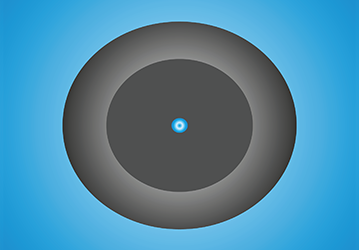

Description : This Product is also call blind disk for Ball Mill. It is a round plate which has all of the relevant bolt holes but no centre hole, and because of this feature Disk is used to close off the end of Ball mill.
Specification :
| D1 | 950 mm | 1080 mm |
|---|---|---|
| D2 | 850 mm | 980 mm |
| H | 40 mm | 40 mm |

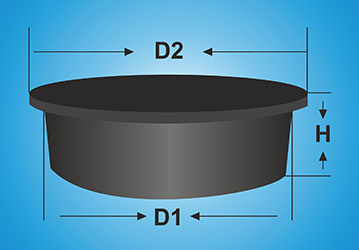

Specification :
| D1 | 310 mm | 490 mm | 550 mm | 590 mm | 600 mm |
|---|---|---|---|---|---|
| D2 | 370 mm | 570 mm | 630 mm | 670 mm | 680 mm |
| H | |||||

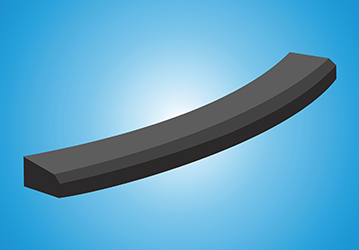

Description : The ball mill filling segment is used to fill the gap which cannot be covered by rubber liners and prevent the leaking of mud or other grinding materials and that protect the ball Mill.

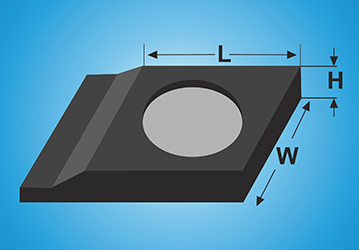

Description : Sakar Supply this Product to Clean wall tiles at final stage to remove unwanted dust during production.
Specification :
| L | 1000 mm | 710 mm |
|---|---|---|
| W | 800 mm | 545 mm |
| H | 75 mm | 75 mm |
| D | 550 mm |

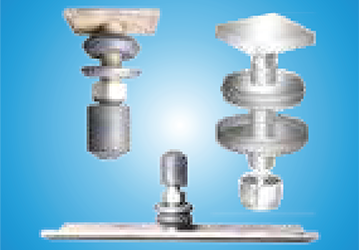

SAKAR supply all fastening components required for mill liner change outs, including :
